I'm trying to find drawings and dimensions for the Ground Controlled Approach (GCA) radar (perhaps also known as PAR, or did that come later?) shown in the images below.
I believe it is called a AN-CPN4, AN-CPN 4A or a AN-CPN 4B. Can anyone confirm the correct name? Is it of US origin?
Does anyone have any drawings or dimensions, or know where I might find such??
You have to be a member to access those mauals with an annual basic subscription of $95.52 which I suspect is beyond most research pockets including mine!
You can tell a builder from an archaeologist by the size of his trowel. Mine is a small one!
Prefix: AN/ = Joint US Army-Navy Nomenclature System *
Installation Location Letter: C = Air Transportable **
Equipment Type Letter: P = Radar
Equipment Purpose Letter: N = Navigation Aid
Model Number: -4 = 4th system of this type, original pattern
Model Number: -4A = 4th system of this type, first modification
Model Number: -4B = 4th system of this type, second modification
* Renamed MIL-STD-196 Joint Electronics Type Designation System in 1957
** Obsolete designation, C now identifiying letter for NSA Cryptographic Equipment
There was a very very tongue-in-cheek article in an radio/electronics magazine many years ago relating to a ficticious bit of American WWII kit called the AN-4Q2. It bordered on the obscene. That particular issue of the magazine became a collectors' item; surprisingly I can't find any mention of it via Google.
Think about it
Plan A is always more effective when the problem you are working on understands that Plan B will involve the use of dynamite
There was a very very tongue-in-cheek article in an radio/electronics magazine many years ago relating to a ficticious bit of American WWII kit called the AN-4Q2. It bordered on the obscene. That particular issue of the magazine became a collectors' item; surprisingly I can't find any mention of it via Google.
We use cookies to improve our website and your experience when using it. Cookies used for the essential operation of this site have already been set. By continuing to use this site you are agreeing to this. To find out more about the cookies we use and how to delete them, see our privacy policy.

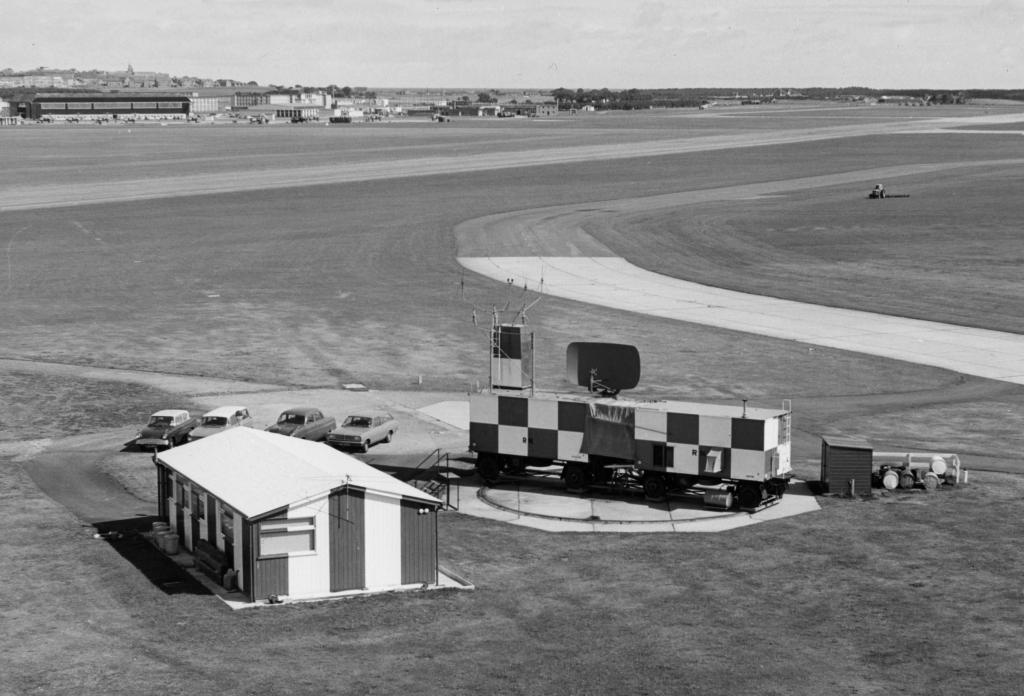

![[IMG]/community/74614=9664-Lossiemouth GCA buildings resized for Stevo.jpg[/img]](/community/74614=9664-Lossiemouth%20GCA%20buildings%20resized%20for%20Stevo.jpg){kind=link}
